Delabie SECURITHERM lämpöeristetty suihkusekoittaja, alaliitin

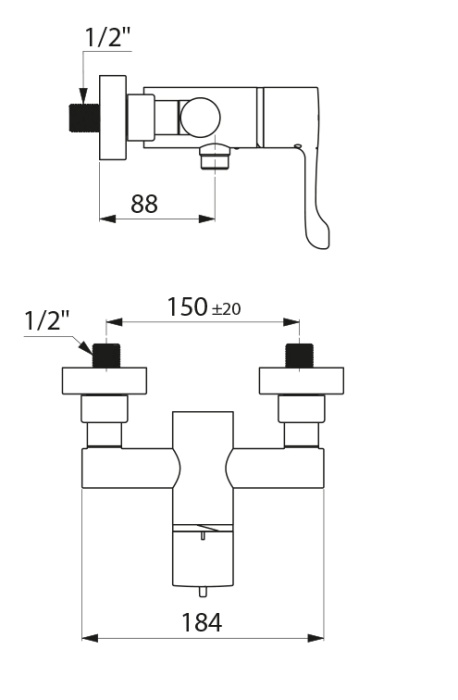

SECURITHERM thermostatic wall-mounted single control twin hole mixer. 150mm centres with M1/2" M3/4" inline STOP/PURGE connectors with isolating unions and purge specifically designed for hospitals. Thermostatic scale-proof sequential cartridge with single control for adjustment of flow and temperature. Flow rate set at 8 lpm at 3 bar. Adjustable temperature range from cold water up to 41°C with maximum temperature limiter set at 41°C.
Possible to activate a thermal shock.

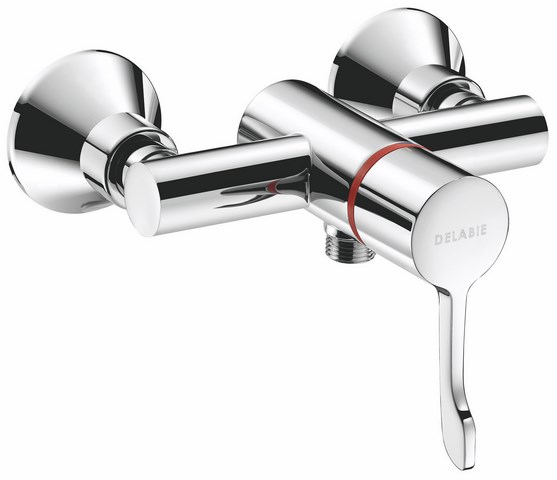

Body in chrome-plated brass with ERGO control. Brand DELABIE type SECURITHERM thermostatic single control shower. Ref H9630 (or approved equivalent).

Ref. : H9630 :

Ref. : H9630HYG :

Ref. : H9630S :

Ref. : H9630KIT :

Ref. : H9630SHYG :

Ref. : H9630SKIT :

Ref. : H9640S :

Ref. : H9640 :

Ref. : H9641 :

• Unlike other thermostatic mixers, our thermostatic mixers deliver cold water at the temperature in the system.

• Operation: The same lateral movement opens the flow and adjusts the temperature (single control). Opens and closes with cold water.
• Uses: All hospital environments where there is a risk of saclding from the hot water supply.
- For short, medium or long stay patient rooms,
- Retirement homes, Mental Health Units, creches, etc.

• ENHANCED SAFETY:
- Maximum temperature limiter: set to 41°C. Unlike domestic thermostatic mixers, the user cannot override the limiter. As a result there is no risk of accidental scalding (the point-of-use is completely safe).
- Automatic anti-scalding safety: > SECURITHERM thermostatic technology ensures that the hot water supply shuts-off instantly if there is a sudden loss of the cold water supply. In case of the loss of the cold water supply, the European Standard EN 1111 permits a slight leak of hot water (0.10L /10 seconds). In the hospital environment, the risk of scalding is increased. It is essential that not even one drop of hot water can flow; with our thermostatic mixing valves the hot water supply shut-off is complete (no leaks at all).
- If there is a sudden loss of the hot water supply our thermostatic mixer will also shut-off the cold water supply.
- Thermal shock safety: It is possible to undertake a thermal shock at the temperature of the hot water in the system. SECURITHERM will withstand temperatures up to 85°C.
• COMFORT:
- Stable temperatures regardless of variations in pressure and flow rates in the circulating loop, reacting instantly to any changes.
- Ergonomic control with easy movement suitable for hospital patients, the elderly and handicapped people.
• Progressive temperature adjustment and opens again at the same temperature setting. Constant flow rate set at 8 lpm.
• EASY TO USE: - Ergo control knobs provide a good grip.
• 10 YEAR WARRANTY.
